Driving Type

Left / Right Hand Driving

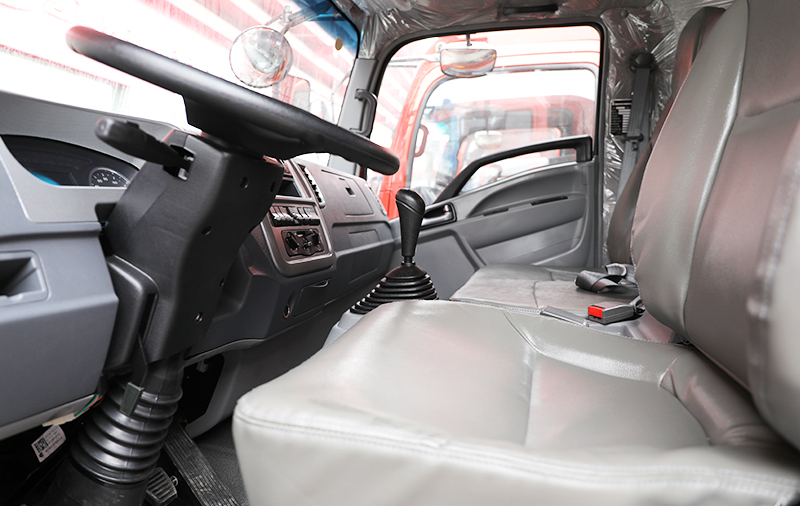

Cabin

2080 Cabin

Engine

Power

130HP

160HP

Emission

Diesel EURO II, IV

Transmission

MANUAL,6F

Steering

Hydraulic steering with power assistance

Frame

Reinforced frame

Front/ Rear Axle

1090/9T

Wheelbase

3800

3800/4200

Fuel tanker capacity

150L

Tyres

9.00R20

Mixing volume

4m³

6m³

Geometric volume of mixing tank

6.6m³

9.9m³

Mixing speed of mixing tank r/min

1～3

Discharging speed of mixing tank r/min

1～16

Loading speed m³/min

3

Unloading speed m³/min

1.5

Residual rate  %

≤0.2

Concrete slump mm

50-220

Water tank volume L

300

Air pressure in water tank Mpa

0.35-0.4

Length of discharging chute m

1.5

Length of extended chute m

0.6
